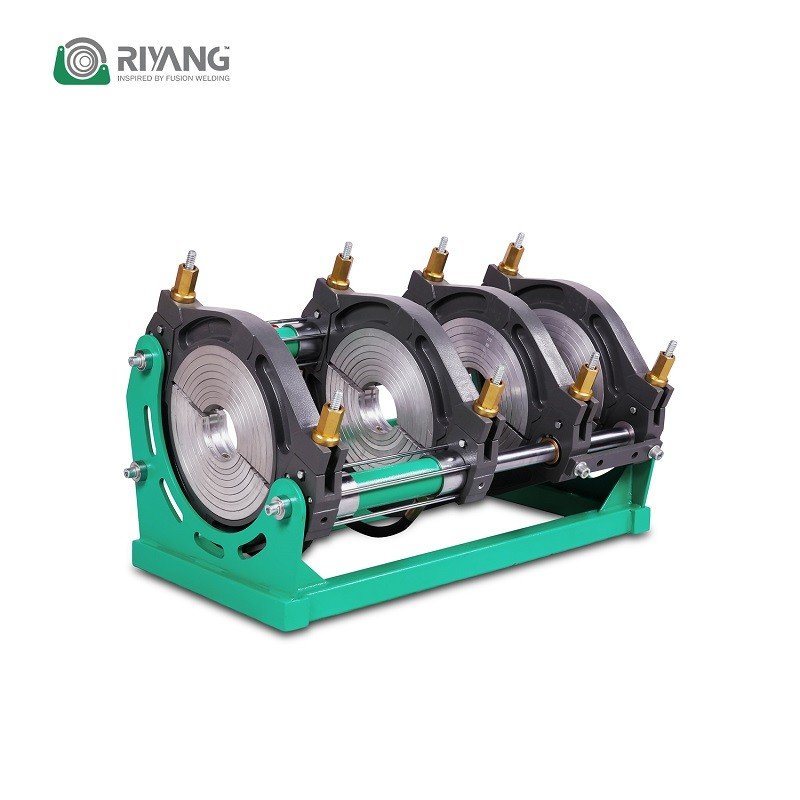

Machine Chassis
● The integral frame features a quick and detachable structure, facilitating rapid maintenance and repair.
● The compact and robust frame structure resists deformation and oil leakage when handling thick pipes with extreme parameters.
● Key hydraulic components are sourced from industry-leading suppliers, primarily from Germany, Italy, and Japan.

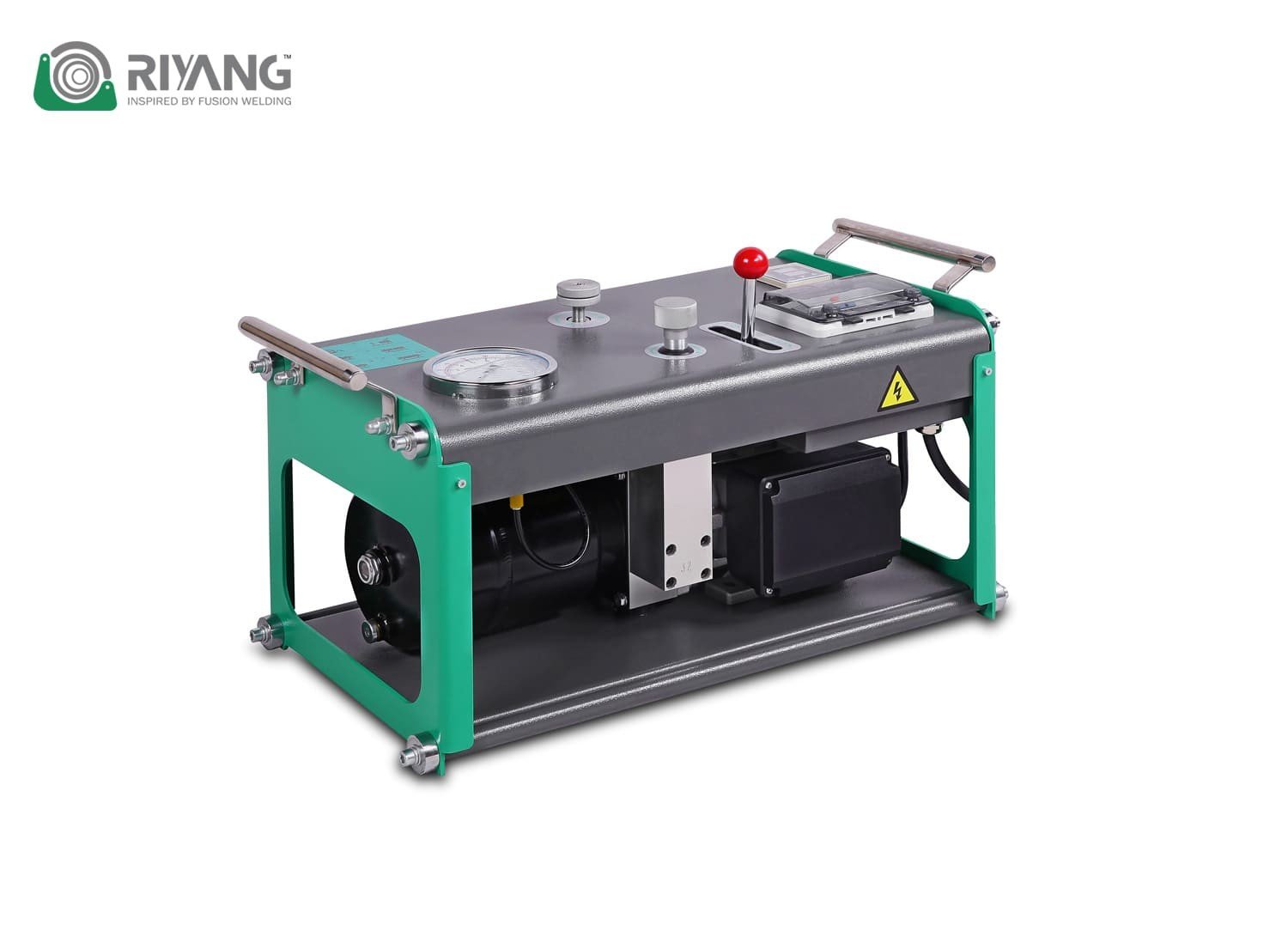

Power Station
● Robust hydraulic power with a maximum system pressure of up to 80 bar.
● Pressure valves employ cartridge valves for quick maintenance and repair.
● Precise temperature control reduces the discrepancy between actual and displayed temperature values, ensuring welding quality.
● The integral frame features a quick and detachable structure for efficient maintenance and repair.
● Compact and robust frame structure resists deformation under external pressure.
Heating Plate & Trimmer
● Utilises Teflon material from a leading industry brand, reducing adhesion between the heating plate and melted plastic for an extended service life.
● Each side of the heating plate maintains a temperature difference of less than 3°C.
● The stainless steel construction of the junction box ensures corrosion resistance.
● Employs the powerful Makita electric drill for efficient pipe facing with a long service life.
● Ergonomic operation handle designed in accordance with ergonomic principles.
Optional Extras:
PE Weld Bank
PE Weld Bank mobile app is a powerful QA, risk management and productivity tool that helps you accurately track your poly welding processes in real time.
PE Weld Bank is not just a Data logger or Data Recorder, it also calculates all pressure, temperature, and time parameters, then instructs the operator through each step
Fittings Chuck / Stub End Holder
The stub end holder is a self centering chuck that is held in the jaw of the fusion machine and in turn, grips the OD or ID of the stub end.
